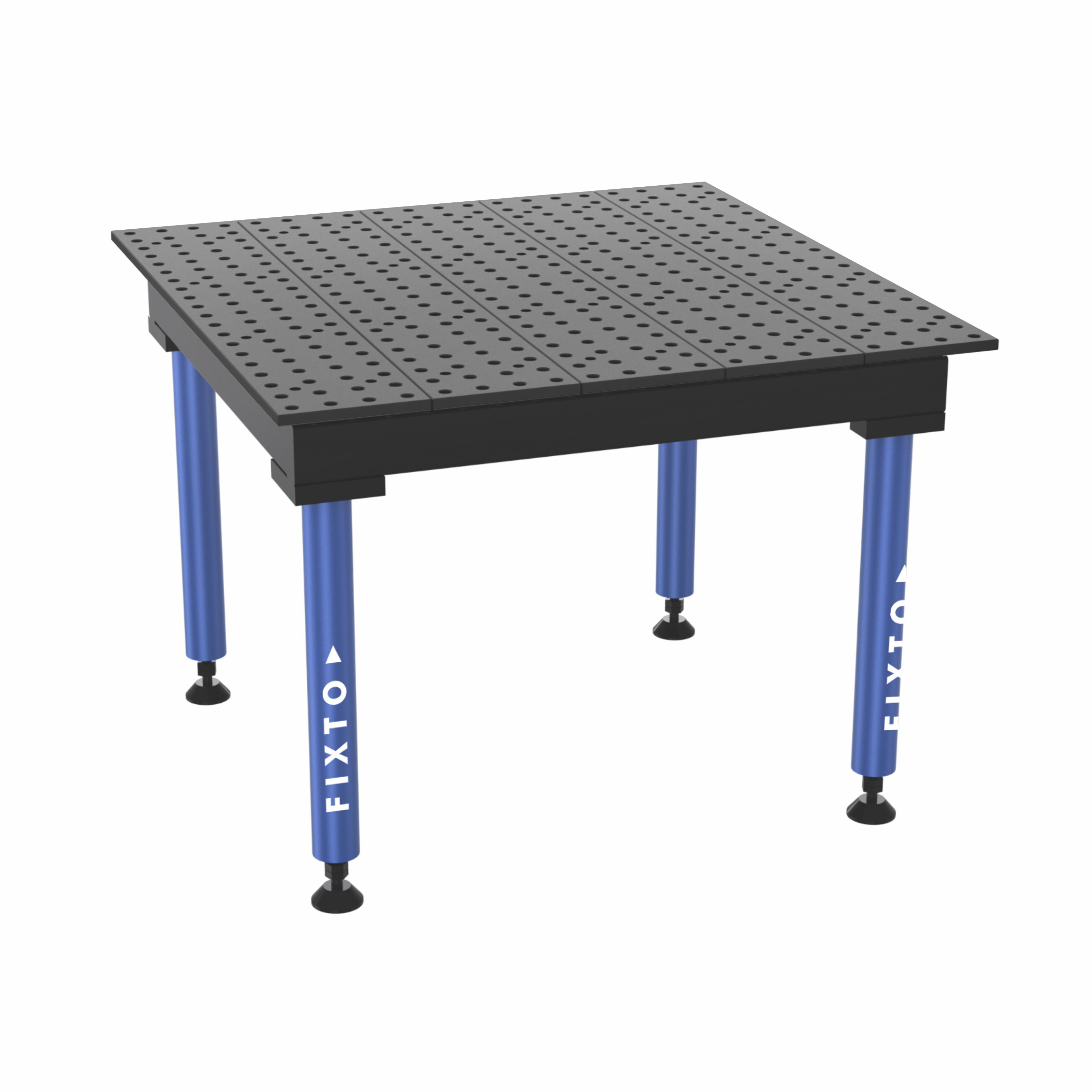

D- 16 2D MODULAR WELDING TABLE 1000mm x 1000mm

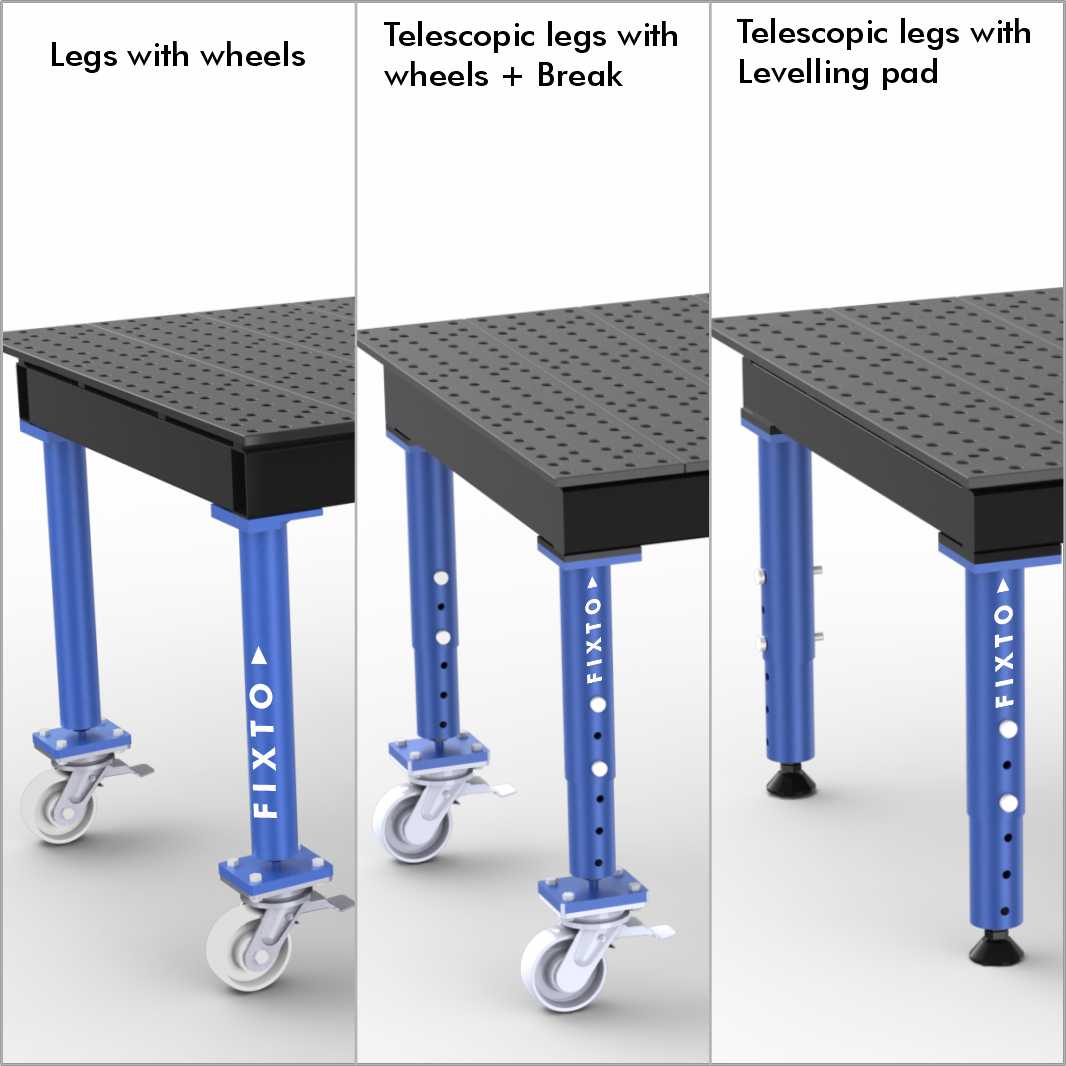

FIXTO D16 Series Welding Tables were made for those that deal with Finer Detail Fixturing Applications, The D16 Series FIXTO Welding Tables are truly built to last a lifetime and far beyond. The D16 Series FIXTO, Indian-Engineered Best Welding Tables are unbelievably rigid and have the flattest surface of any Welding Table in the market, with a option of 5-Sided 3D and 1- Sided 2D welding tables which can be used with or without optional heavily constructed legs. The Nitride finish protects the welding tables against rust and weld spatter to make sure that the welders surface is kept extremely clean and accurate for fixturing.
Modular Type No gap Between two Plates 33% more machined holes Comes with movable type

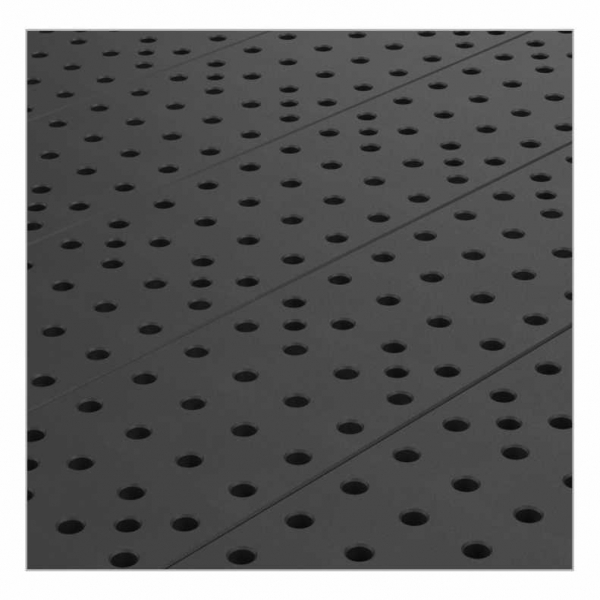

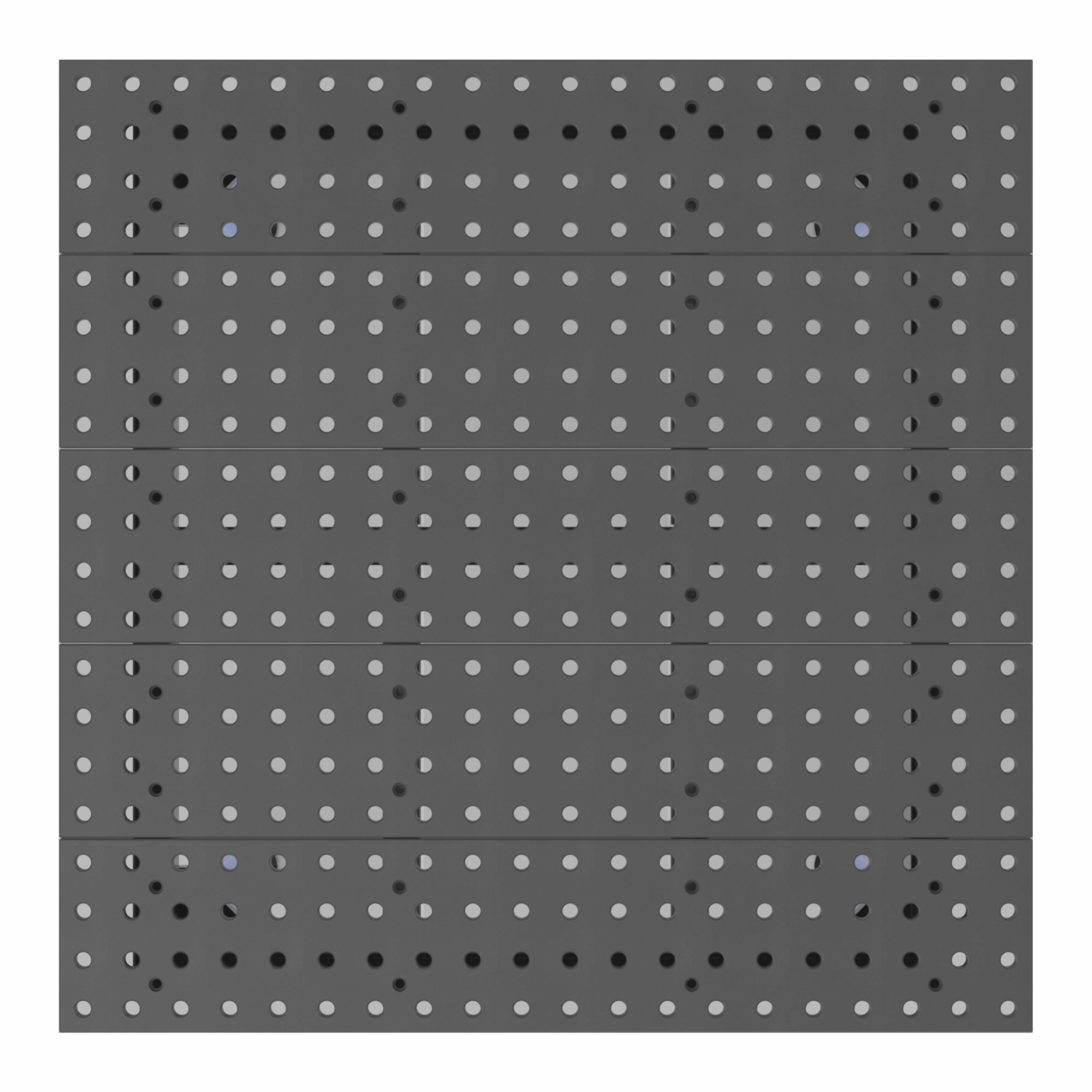

Top Plates can be reconfigured to expand the width of the table for larger projects. Precision ground steel plates , with CNC machined 16 mm Dia holes in a 50 mm grid pattern for locating, positioning and mounting FIXTO clamps and accessories. Heavy Duty Leveling Feet ensures proper leveling of the table on uneven surfaces.
Model : NWT-1010
Product Details

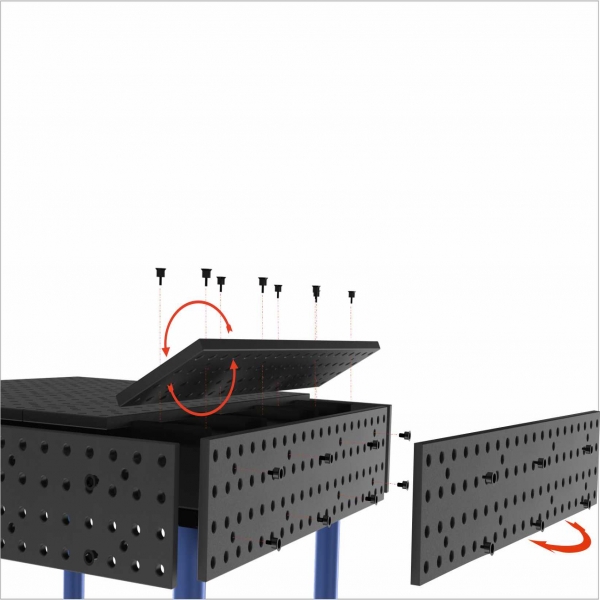

Reversible, Self-Locating Plates
FIXTO special nitrided table top design allows you to remove, re-position, re-align, and reverse the table top plates!
Table Accuracy

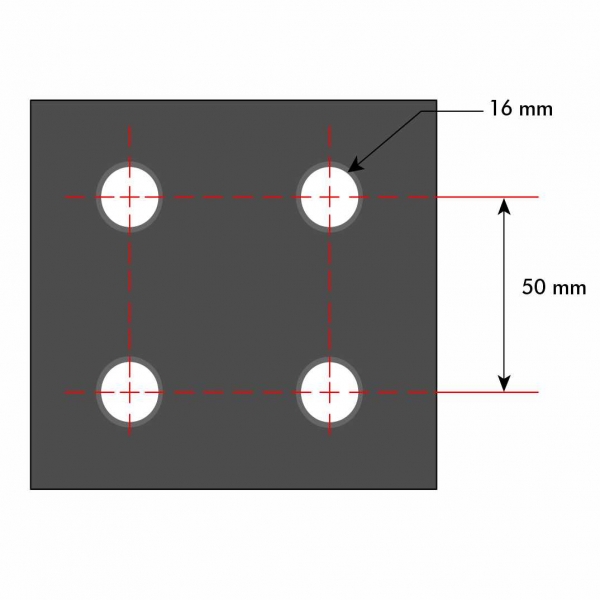

Table Hole Dia. 16
Hole Spacing 50
Table Flatness ± 0.3 mm per 1000 x 1000 mm
Plate Thickness 15
Nitrided Finish
Material Steel IS2062
Nitriding Case Depth 0.01-0.02 mm
Surface Hardness HV 450
Coefficient Of Friction 0.37
Side Plates
The new five sided 3D table features with 100 mm or 200 mm side plates.
Fixto 3D table side plates feature an extended 5 clamping holes pattern for added precision and adjust-ability.
