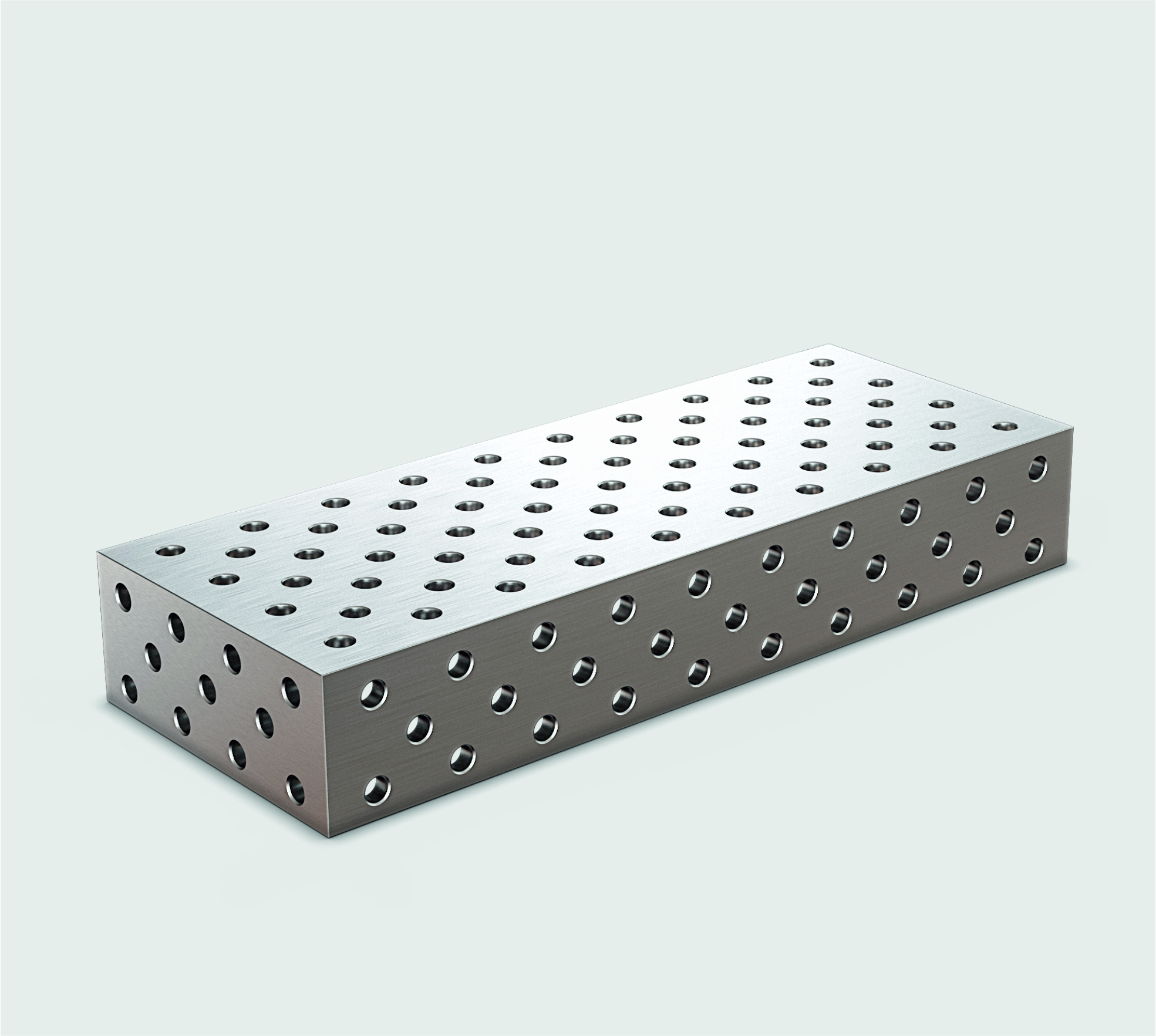

Extension Block

Square blocks are used as table extensions and vertical setups, they are available in 200 x 400 mm profiles.
Square blocks over 500 mm in length come with leg mounting holes; all lengths longer than 500 mm should be supported by additional legs when used in a cantilever position.
The FIXTO Fixture Clamp is a great tool for welders. One of the biggest difficulty that welders face is positioning the items that need to be welded. That is where the FIXTO Fixture Clamps comes in use. The Fixture Clamps ensure that the items to be welded remain in position with the help of FIXTO welding table which gives highly accurate surface and fixture hole combination, also FIXTO welding table and fixture clamp helps to reduce and control the distortion of the job. Welder can easily make production with FIXTO welding table and fixture clamps to improve the quality of welding job.

Extension Block
Features:
  • Easy to make a frame structure
  • Use as a lateral table locator
  • Use: 5-sided
  • Third axis extension as a clamping tower
  • As table connection for connecting multiple 3D tables

Models

Add to My Fixture Model No Length Width Height
FIXTO-D28FXU05-02 500 400 200
FIXTO-D28FXU10-02 100 400 200
FIXTO-D28FXU12-02 1200 400 200
FIXTO-D28FXU15-02 1500 400 200
FIXTO-D28FXU20-02 2000 400 200
FIXTO-D28FXU24-02 2400 400 200
FIXTO-D28FXU30-02 3000 400 200
FIXTO-D28FXU40-02 4000 400 200
