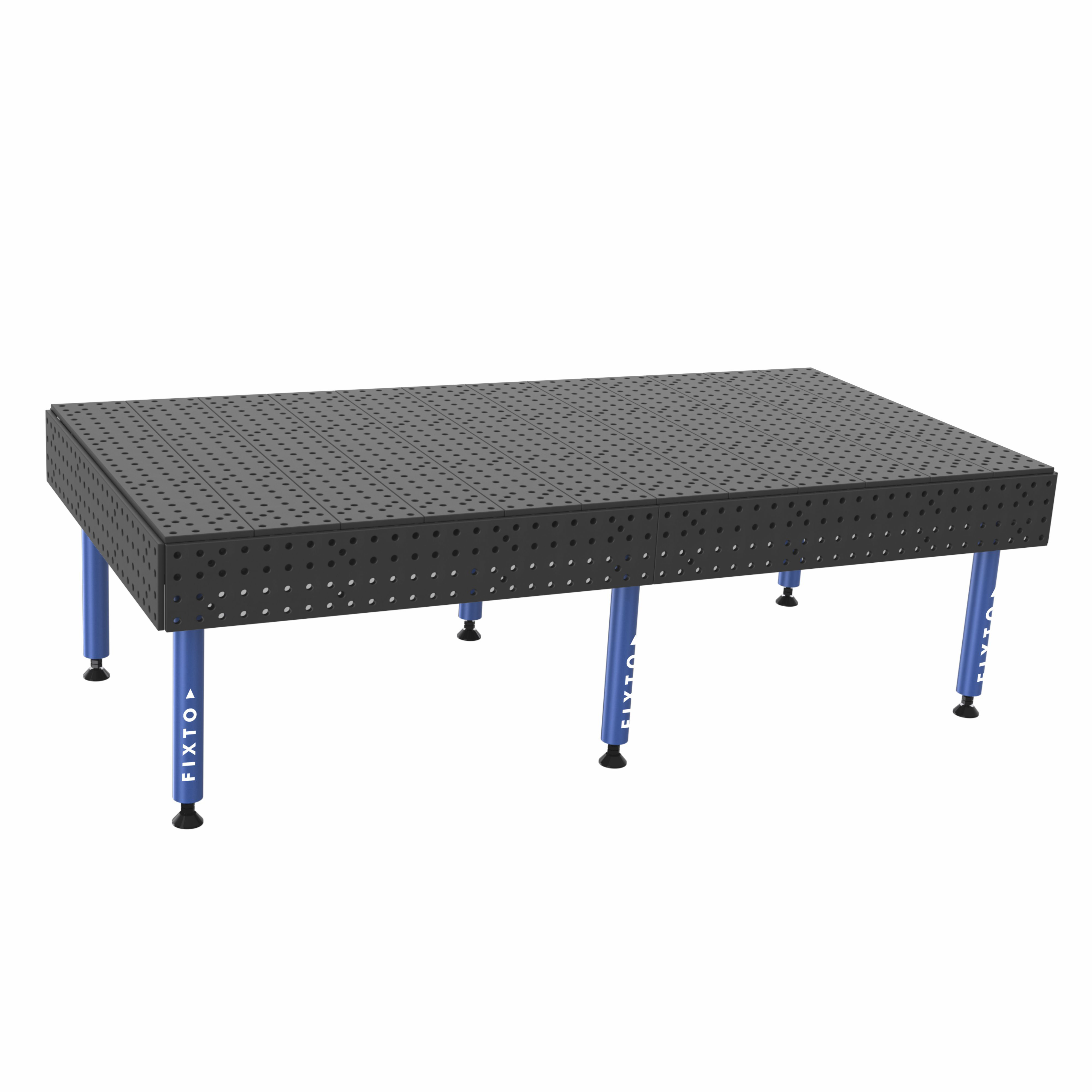

3D MODULAR WELDING TABLE 1200mm x 2400mm x 200mm
Backed by a team of experienced and skilled professionals, we are engaged in manufacturing and supplying Heavy Duty Welding Table. Precisely engineered for heavy duty welding applications, these durable and sturdily constructed welding tables are extensively popular for their high load bearing capacity and portability. To avoid damages, we provide safe packaging of the range.
D16 Hole separation = 50±0.05mm Stiffener base to ensure stability Have 5 working surfaces Surface hardness=20HRC Flatness=0.1/1000mm Verticality=0.1/200mm Surface Roughtness=Ra3.2
Model : NST-1224
Product Details

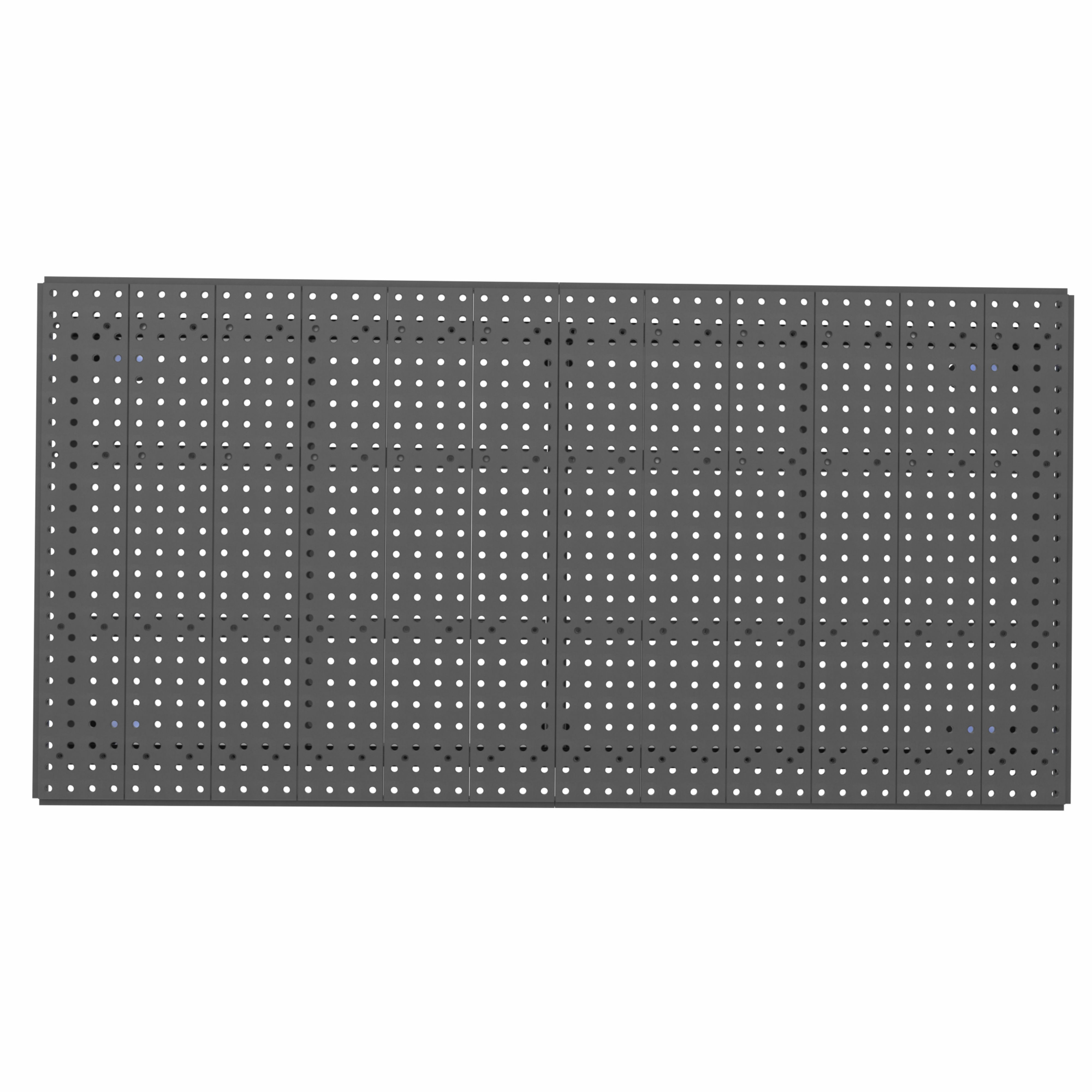

Reversible, Self-Locating Plates
FIXTO special nitrided table top design allows you to remove, re-position,re-align, and reverse the table top plates!
Table Accuracy

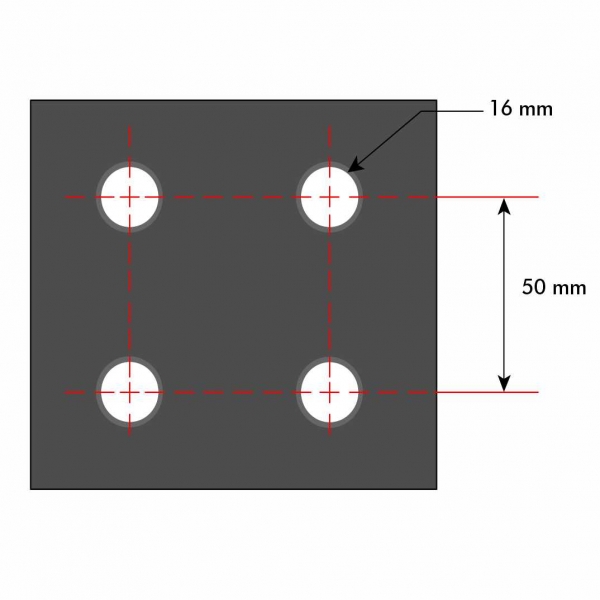

Table Hole Dia. 16
Hole Spacing 50
Table Flatness ± 0.3 mm per 1000 x 1000 mm
Plate Thickness 15
Nitrided Finish
Material Steel IS2062
Nitriding Case Depth 0.01-0.02 mm
Surface Hardness HV 450
Coefficient Of Friction 0.37
Side Plates

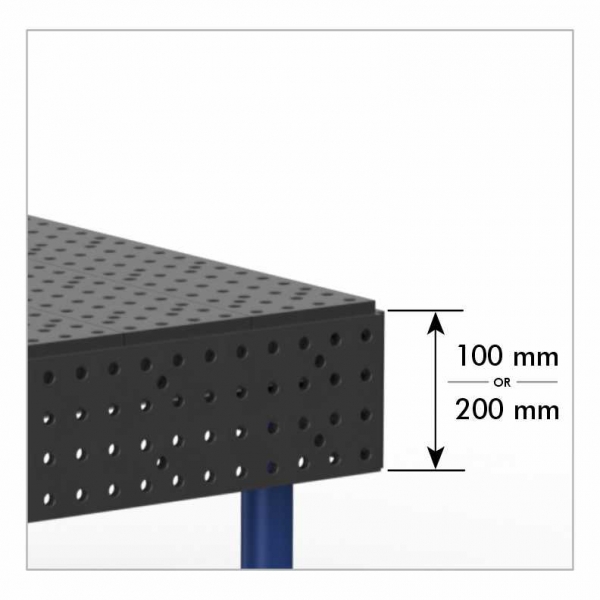

The new five sided 3D table features with 100 mm or 200 mm side plates.
Fixto 3D table side plates feature an extended 5 clamping holes pattern for added precision and adjust-ability.
