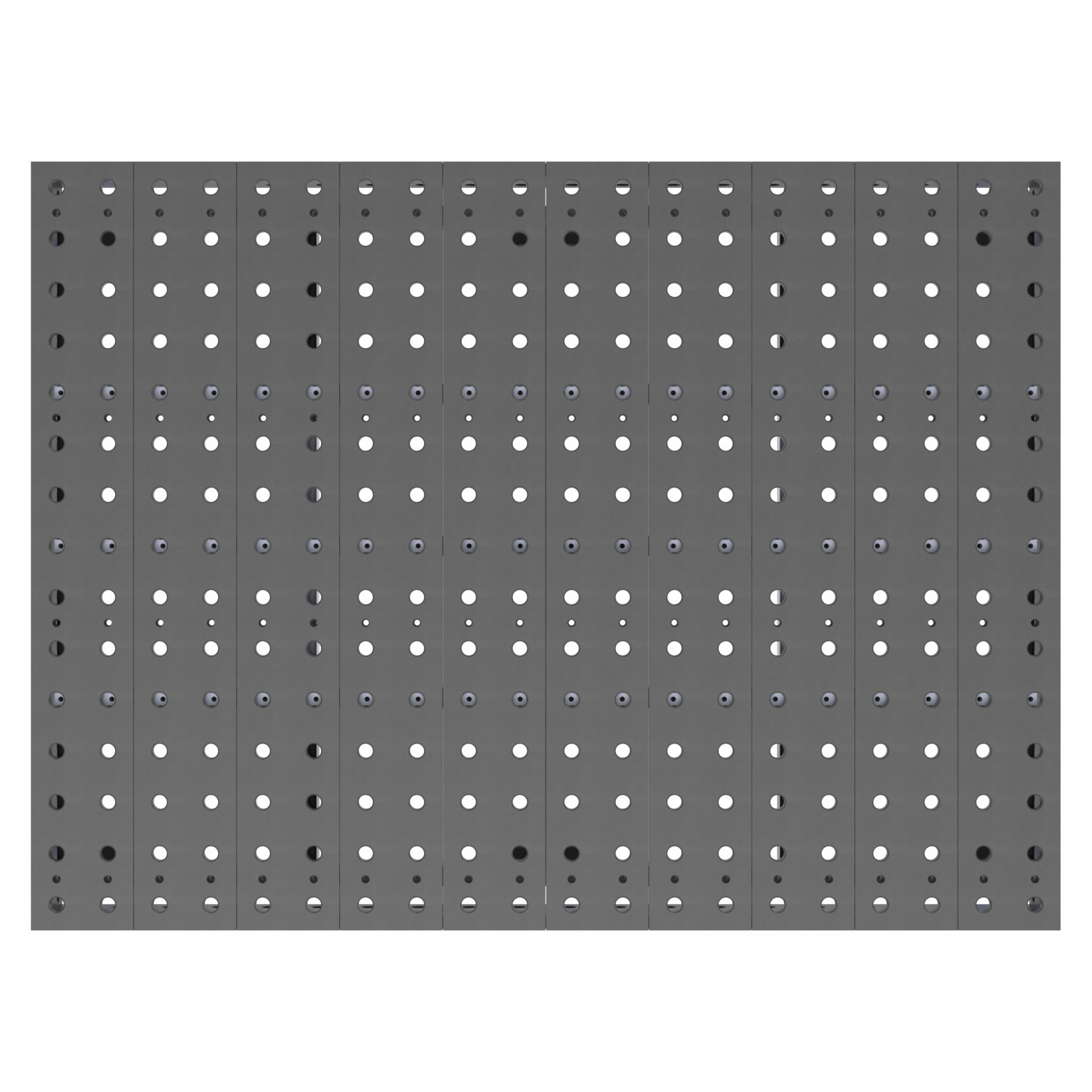

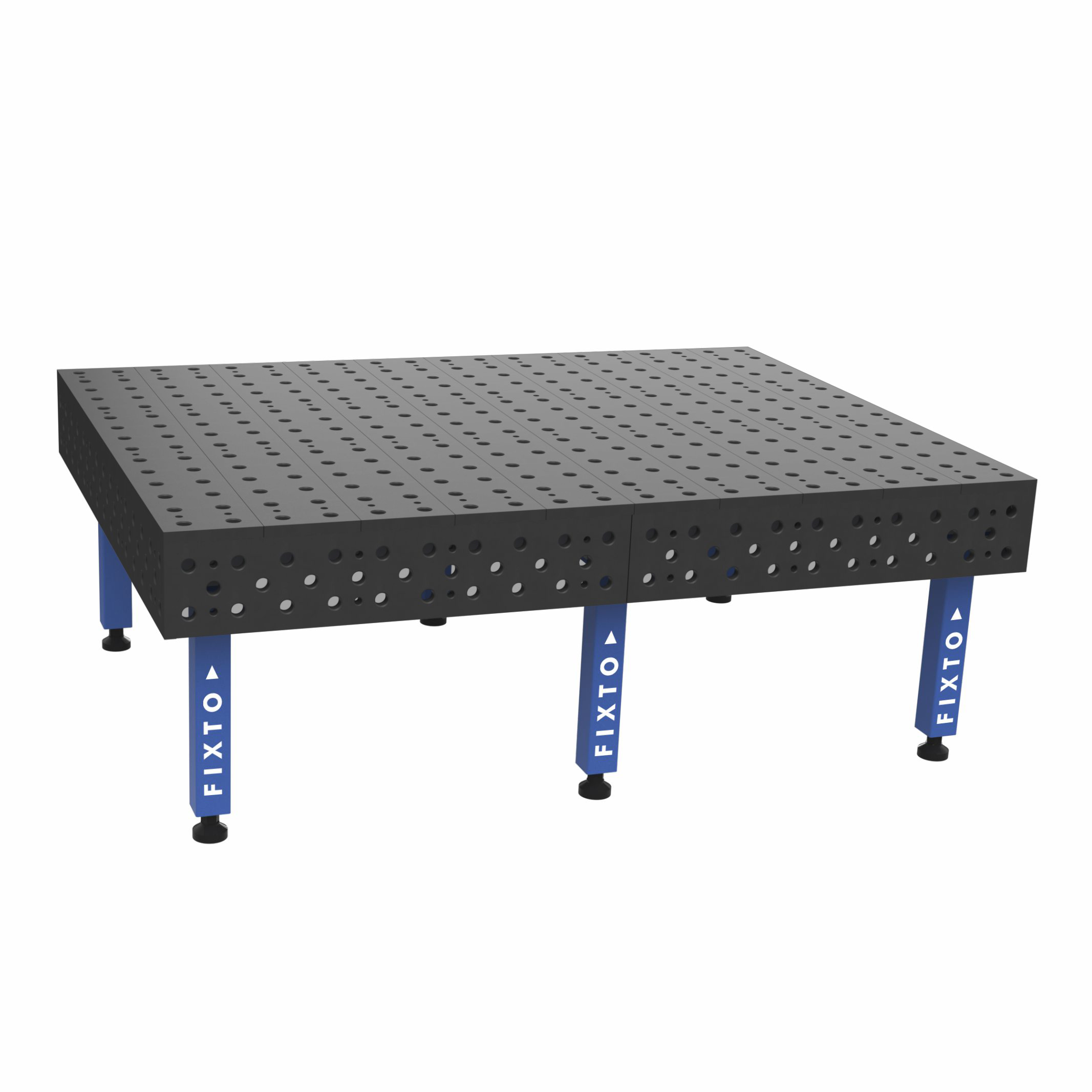

3D MODULAR WELDING TABLE 2000mm x 1500mm

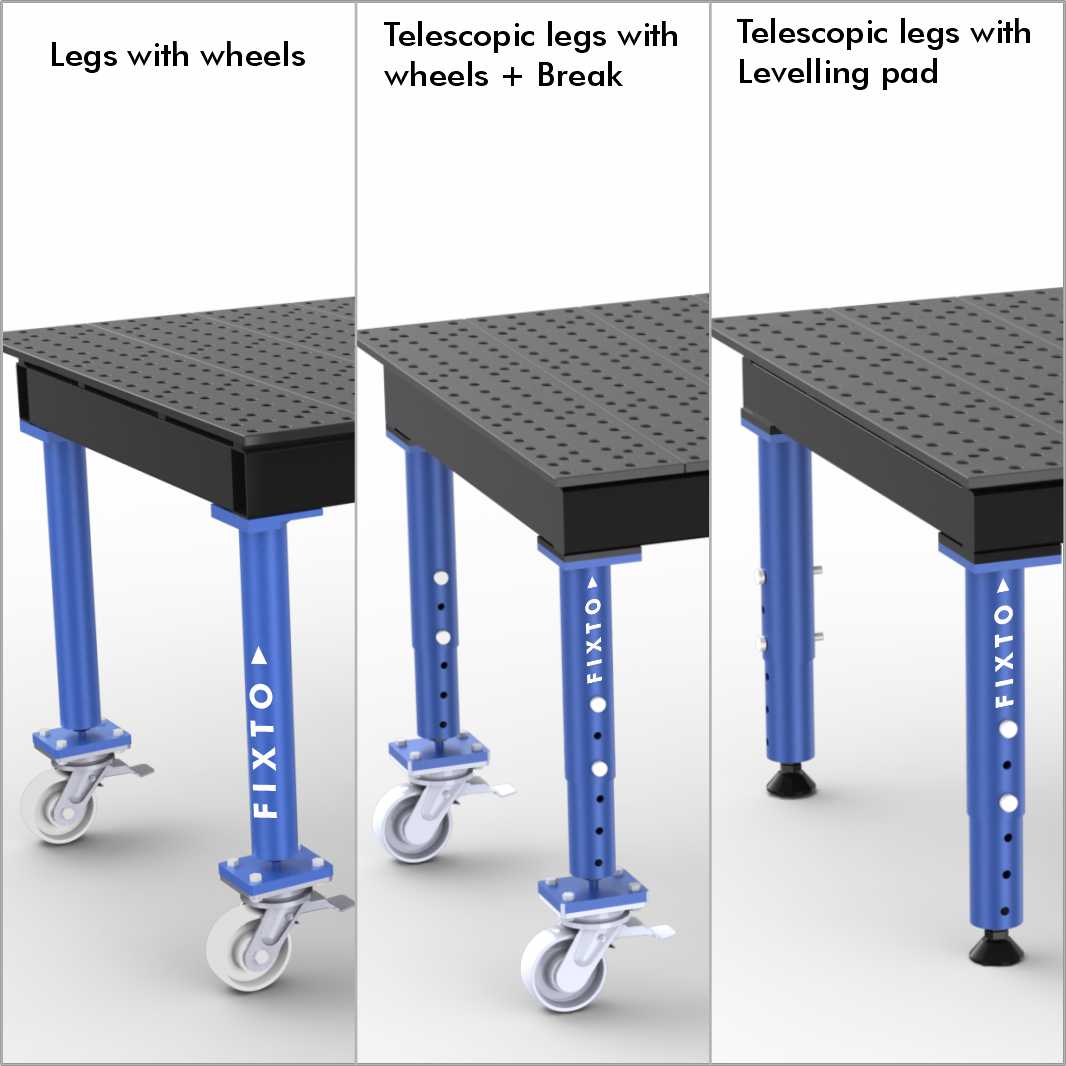

FIXTO D28 Series Welding Tables are made for the most Heavy-Duty Metal Fabrication Fixturing Applications. They truly are built to last a lifetime and beyond. The FIXTO, Indian-Engineered Welding Tables are extremely rigid and have the flattest surface of any Welding Table in the market, with a option of 5-Sided 3D and 1- Sided 2D welding tables which can be used with or without optional heavily constructed legs. The Nitride finish protects the welding table against rust and weld spatter to make sure that the Welding Tables surface is kept extremely clean and accurate for fixturing.
D28 Hole separation=100±0.05mm Stiffener base to ensure stability Have 5 working surfaces Surface hardness=20HRC Flatness=0.3/1000mm Verticality=0.1/200mm Surface Roughtness=Ra3.2
Model : NCG-2015
Product Details

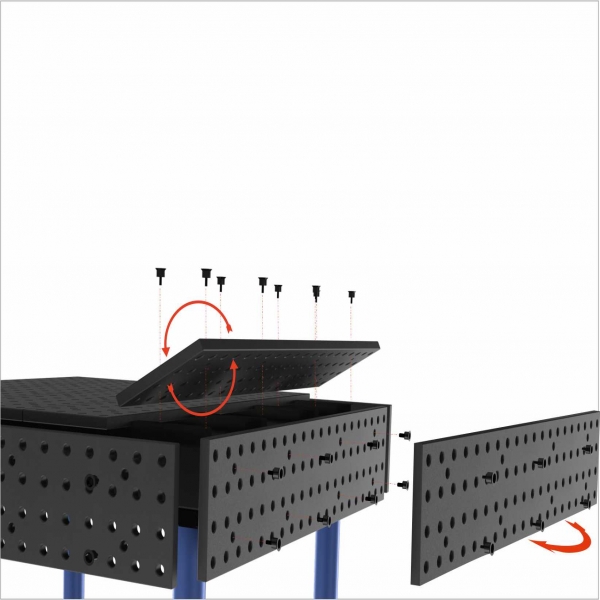

Reversible, Self-Locating Plates
FIXTO special nitrided table top design allows you to remove, re-position, re-align, and reverse the table top plates!
Table Accuracy

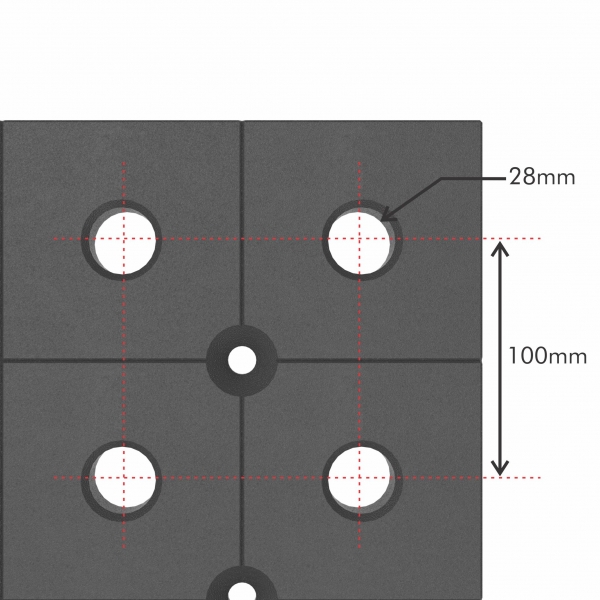

Table Hole Dia. 28
Hole Spacing 100
Table Flatness ± 0.3 mm per 1000 x 1000 mm
Plate Thickness 24

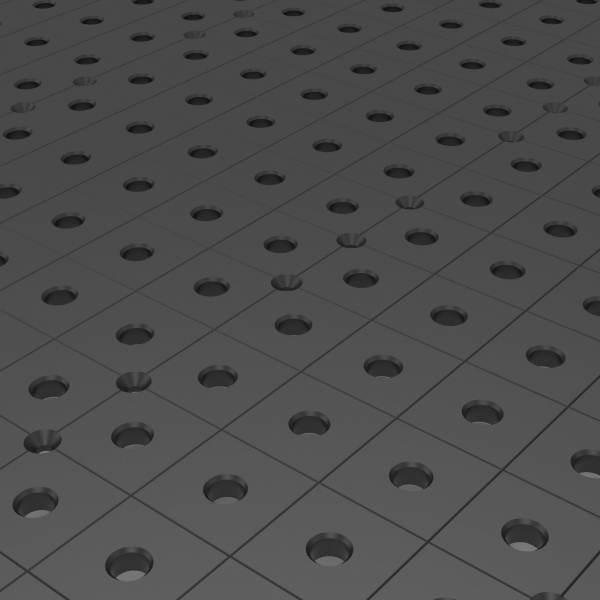

Nitrided Finish
Material Steel IS2062
Nitriding Case Depth 0.01-0.02 mm
Surface Hardness HV 450
Coefficient Of Friction 0.37
Side Plates

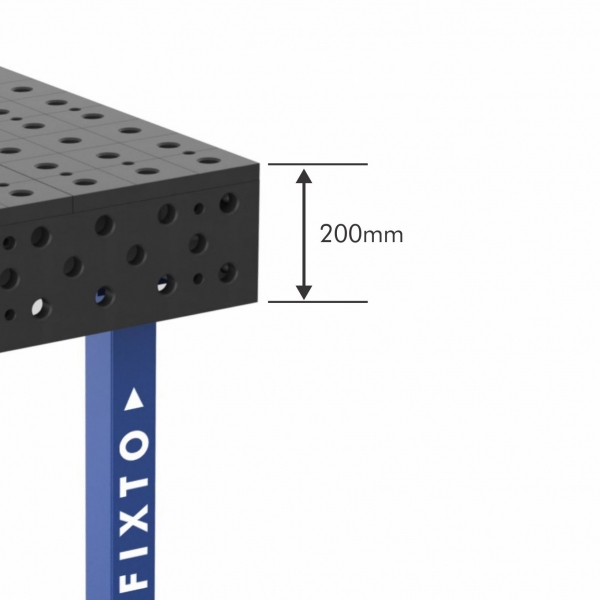

The new five sided 3D table features with 200 mm side plates.
Fixto 3D table side plates feature an extended 5 clamping holes pattern for added precision and adjust-ability.
